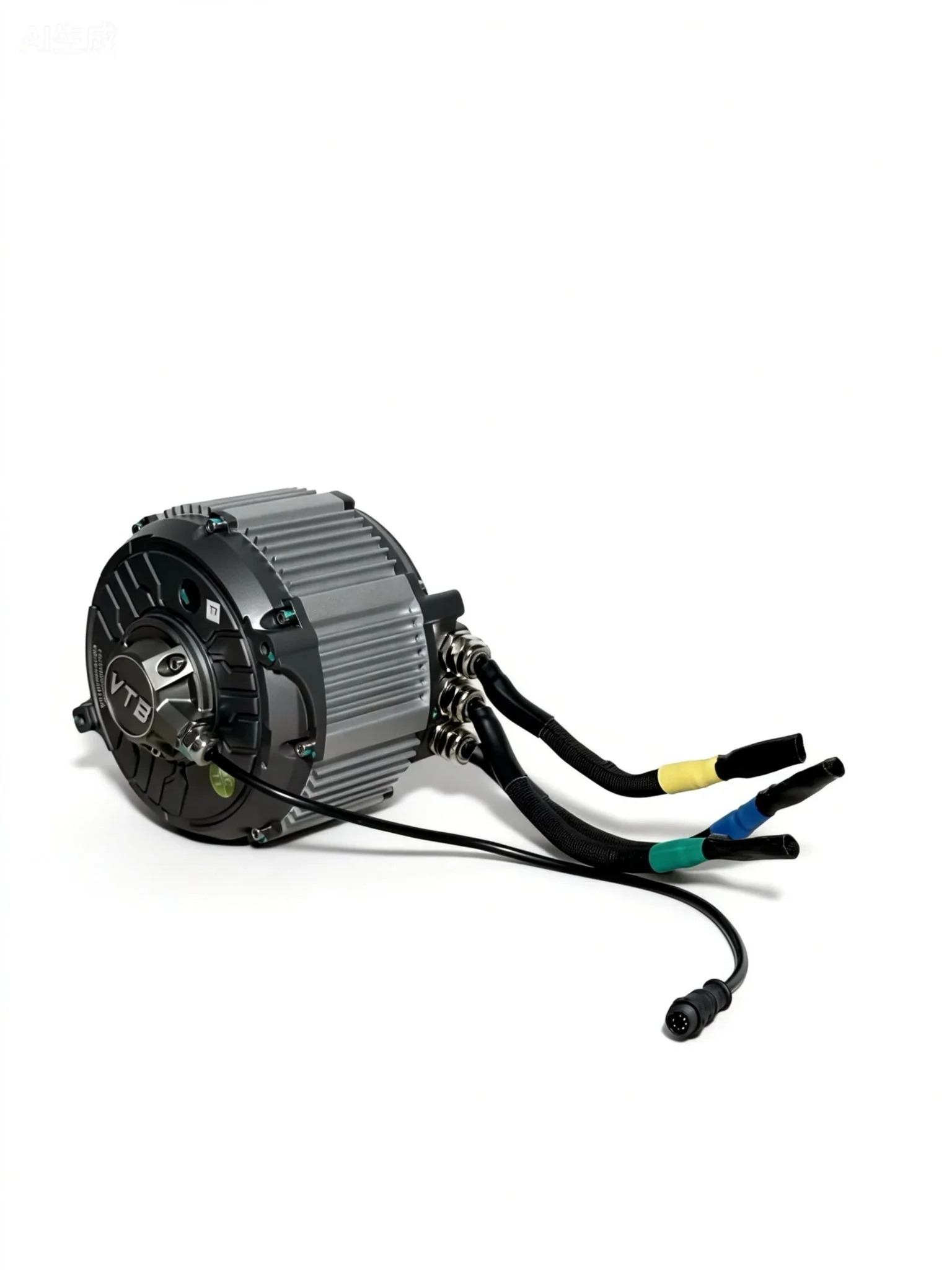

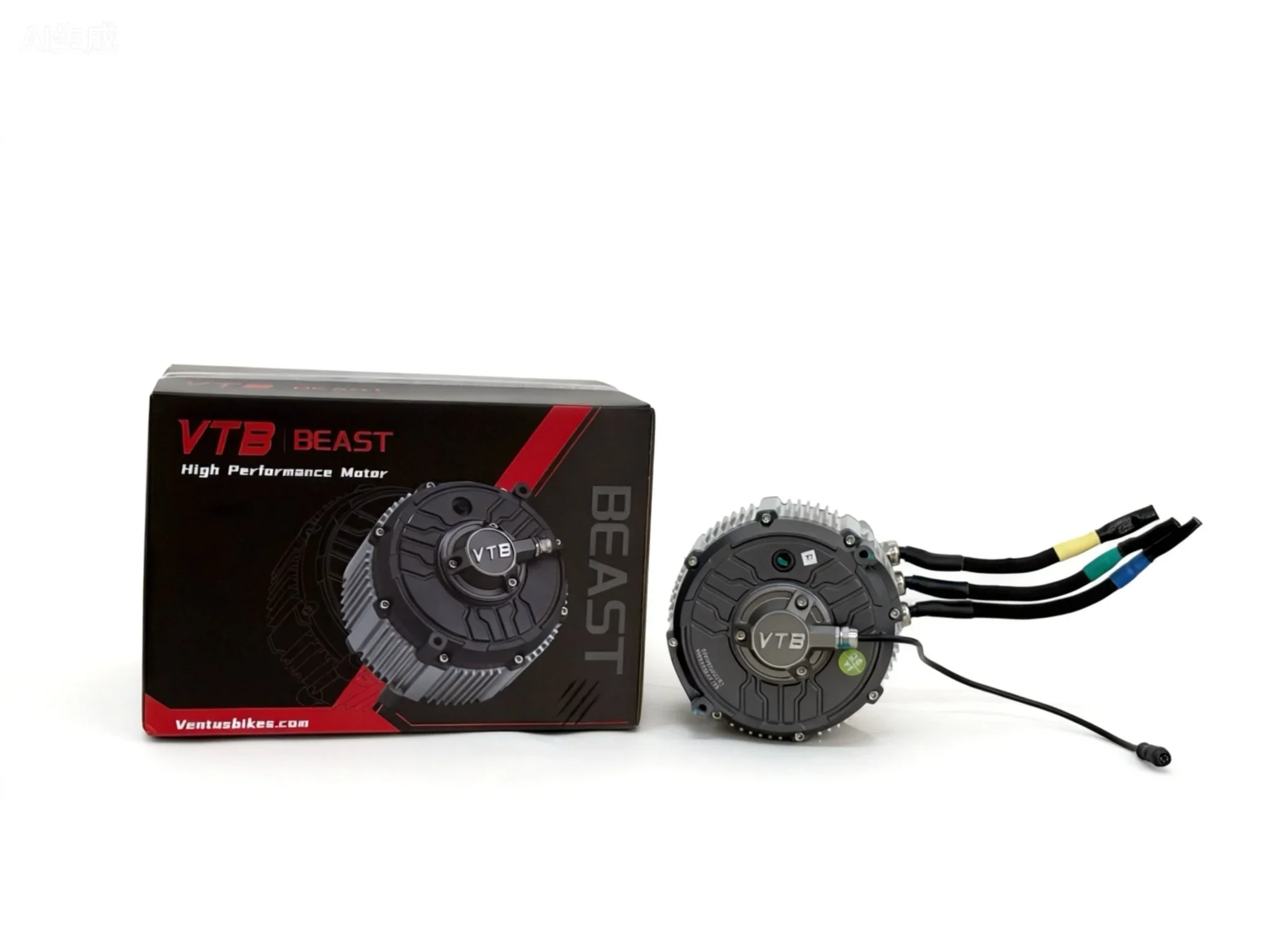

Ventus 28 kW Light Emoto Motor

VTB Beast Motor – 28kW Performance Upgrade

The VTB Beast Motor is built to dramatically increase the performance of lightweight e-motos. When paired with a VTB V9600 controller and a high-output battery, it transforms a light e-moto into a 28 kW high-power machine with strong torque, fast response, and excellent efficiency. Designed for aggressive riding, the Beast delivers reliable power, precise control, and durable construction for demanding conditions.

Fitment

• Surron Light Bee
• Talaria XXX
• Eride Pro SS / 2.0 / 3.0
• 79 Bike Falcon M / Pro / GT
• Rerode R1 / R1+

Performance Specs

• Peak Power: 28 kW
• Max Torque: 62 Nm
• Max Efficiency: ≥95%
• Operating Voltage: 48–100V
• Max Stable Rotor Speed: 9,500 RPM
• KV Rating: 75KV
• Max Phase Current: 850A

Thermal Protection

Power limiting starts at 130°C
Power cut at 150°C

Motor Construction

IPM (internal permanent magnet) rotor
High-strength 40CrMoTi steel shaft
0.5 mm rotor air gap for high torque output
High-magnetic-force stator laminations
VPI-treated stator windings for insulation and durability
Sealed high-quality bearings for shock resistance

Sensors & Electronics

Encoder sensing (ABZ + PWM, 1024 pulses) for precise throttle and speed control
NTC 10k temperature sensors
Nylon M12 circular connector for V9600 compatibility
IP67 waterproof rating

Physical Specs

Stator Size: 130 × 180 mm
Weight: 10.9 kg
Color: Iron Gray
